The core technology of sponge-like pore structure membrane pores combines high filtration accuracy (0.03 microns) and high water flux.
The modified thermal spinning process and the innovative technology of high crystallinity enhancement achieve high toughness, high tensile elongation at break and high mechanical strength of the membrane material, ensuring no filament breakage under harsh operating conditions or cleaning conditions.
Core technology of in-situ superhydrophilic modification, superhydrophilicity, and excellent anti-pollution performance.
Name | PVDF ultrafiltration membrane | |
Pure water flux (0.1 MPa) | >700L/（㎡·h） |
|
Single filament strength | >5N | |
Aperture | <30μm | |
Surface water contact angle | <30° | |
Technical parameters of polyvinylidene fluoride (PVDF) hollow fiber industrial membrane modules
Membrane form | External pressure hollow fiber | ||||
Membrane material | PVDF (Polyvinylidene Fluoride) | ||||
Shell material | UPVC (Unplasticized Polyvinyl Chloride) | ||||
Nominal membrane pore size (μm) | <0.03 | ||||
Inner and outer diameters of the membrane (mm) | 0.6 times 1.1 or 0.7 times 1.3 | ||||

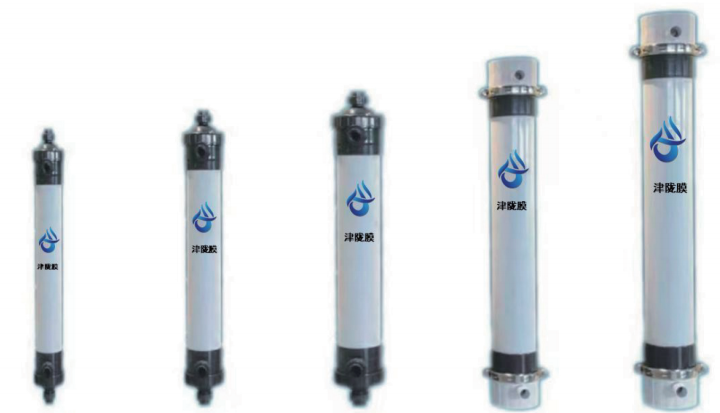

Component model | JLMUF-2440 | JLMUF-2640 | JLMUF-2840 | JLMUF-2860 | JLMUF-2880 |
Component net weight + Water weight (KG) | 4+4 | 12+12 | 20+20 | 40+40 | 50+50 |
Membrane area (㎡) | 9 | 20 | 35 | 55 | 77 |
Overall dimensions (mm) | 90x1100 | 160x1100 | 200x1100 | 225x1860 | 225x2360 |
Inlet and outlet water diameter | DN25 | DN32 | DN40 | DN50 | DN50 |
Pure water flux | ≥2T/H | ≥5T/H | ≥6T/H | ≥10T/H | ≥15T/H |
Design flux: 0.1 MPa/25°C | 0.5-1m³/h | 1-1.5m³/h | 1.5-2m³/h | 2-2.5m³/h | 3-3.5m³/h |
Service life | 3 to 5 years | ||||
Water production turbidity (NTU) | ≤0.1 | ||||
Product water SDI | <3.0 | ||||
TOC removal rate | 20%～60% | ||||
pH range | 2 to 12 (1 to 12 when cleaning) | ||||
Maximum influent turbidity (NTU) | 300 | ||||
Maximum inlet water pressure (MPa) | 0.6 | ||||
Filtration flux range | 40 - 120L/㎡·h (selected according to the influent conditions at 0.1MPa) | ||||
Maximum transmembrane pressure difference (MPa) | 0.2 | ||||
Operating temperature range (℃) | 2～45 | ||||
Maximum residual chlorine concentration in influent (mg/L) | 200 | ||||
Maximum residual chlorine concentration of the cleaning agent (mg/L) | 2000 | ||||
Operation mode | Full-flow filtration or cross-flow filtration | ||||
.jpg)

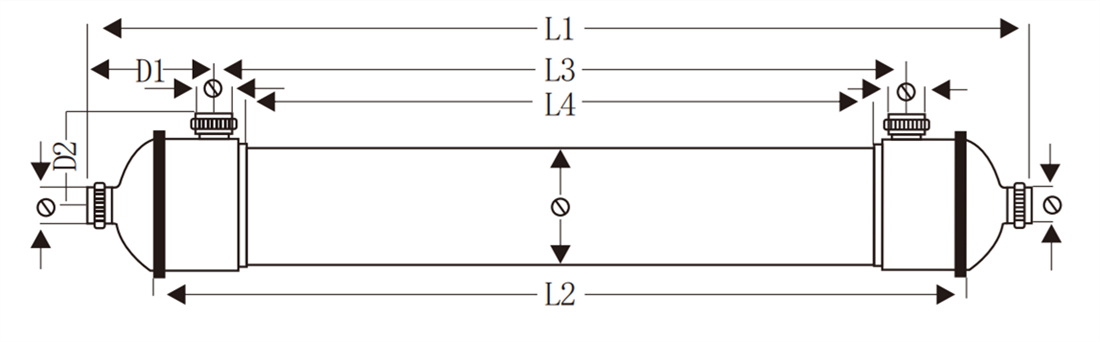

Model | Outer diameter | L1 | L2 | L3 | L4 |
JLMUF-2440 | 90 | 1120 | 1000 | 920 | 840 |
JLMUF-2640 | 160 | 1250 | 1000 | 890 | 740 |
JLMUF-2840 | 200 | 1260 | 1000 | 860 | 680 |

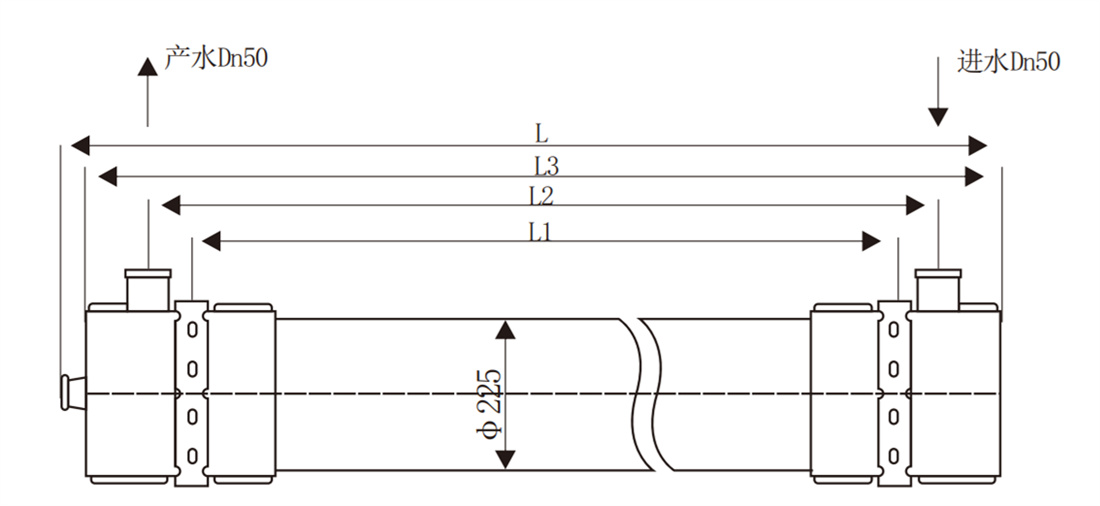

Model | L | L1 | L2 | L3 |
JLMUF-2860 | 1860 | 1500 | 1630 | 1820 |
JLMUF-2880 | 2360 | 2000 | 2130 | 2320 |
