Introduction to Membrane Products and Technologies
Jinlong enhanced polyvinylidene fluoride curtain membrane, high-strength hollow fiber membrane is prepared on the outside of the fiber braided tube. The fiber braided tube enhanced hollow fiber membrane has strong mechanical properties and interface bonding ability. The fiber braided tube enhanced hollow fiber membrane bioreactor is used to treat domestic sewage, featuring low energy consumption, high water purification flow, easy cleaning, long service life and stable water quality.
Excellent peel strength

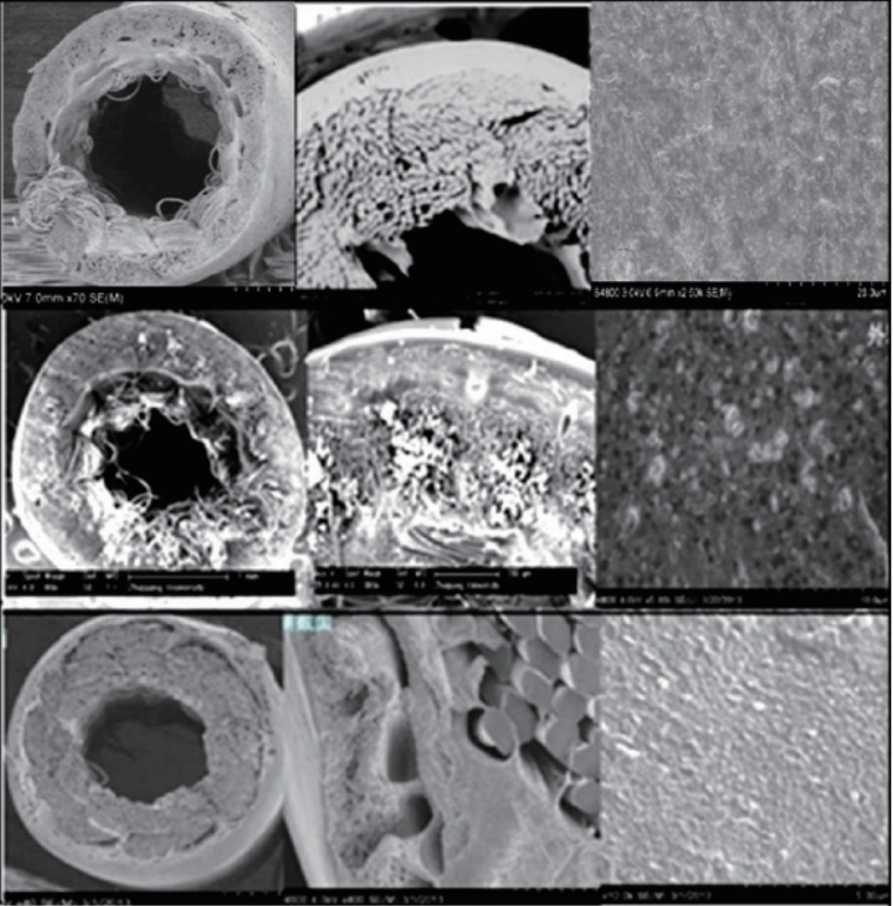

Company | Inner/Outer diameter (mm) | Flux: L/(㎡·h), 0.1 MPa | Aperture (μm) | SEM | Cross-section | Outer surface |
This project | 1.0/2.6 | ～1000 | 0.04 |
| ||
0.7/1.3 | ||||||
A certain Japanese brand | 1.0/2.8 | ～1000 | 0.04 | |||
Well-known domestic brand | 0.9/2.1 | ～1000 | 0.08 | |||
Microfiltration pores, easy to attach microorganisms, enhance aerobic biochemical process

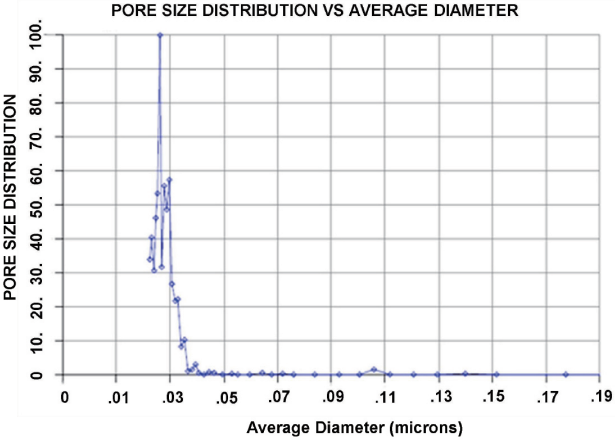

The average pore size of the enhanced polyvinylidene fluoride curtain membrane produced by Jinlong is less than 0.03 μm, which can effectively attach bacteria and microorganisms with a pore size distribution in the range of 0.02 - 0.03 μm. The turbidity of the produced water is less than 0.3 NTU, ensuring excellent water quality.
The excellent interface supports compounding and super-hydrophilicity
The Jinlong enhanced polyvinylidene fluoride curtain film has excellent interfacial support and composite properties, with a smooth, dense, and superhydrophilic outer surface. When water droplets contact the surface of the enhanced polyvinylidene fluoride curtain film, the water contact angle can reach 0 ° within 3 seconds.
Main technical parameters
Diaphragm model | JLM-MBR-Microfiltration | JLM-Submerged Ultrafiltration |
Membrane material | PVDF | |
Filtration accuracy (μm) | 0.1 | ＜0.03 |
Outer diameter (mm) | 1.3 or 2.0 | |
Diaphragm specifications (mm) | 578x2000x40 | |
Effective membrane area (m²) | 10～30 | |
Filtering method | Negative pressure suction/Gravity static pressure | |
Water production flux (L/m²·h) | 10～30 | |
Material of the water production pipe | ABS | |
Operating temperature (°C) | 5～40 | |
pH range for use | 2～13 |
Water production turbidity (NTU) | ≤0.3 |
Tensile breaking strength (N) | >200 |
Porosity | >68% |
Operating pressure (MPa) | -0.01～-0.05 |
Maximum transmembrane pressure difference (MPa) | -0.05 |
Bacterial retention rate | >99% |
Maximum tolerated residual chlorine (ppm) | 2000 |
