Effective membrane area

10㎡

15㎡

20㎡

33㎡

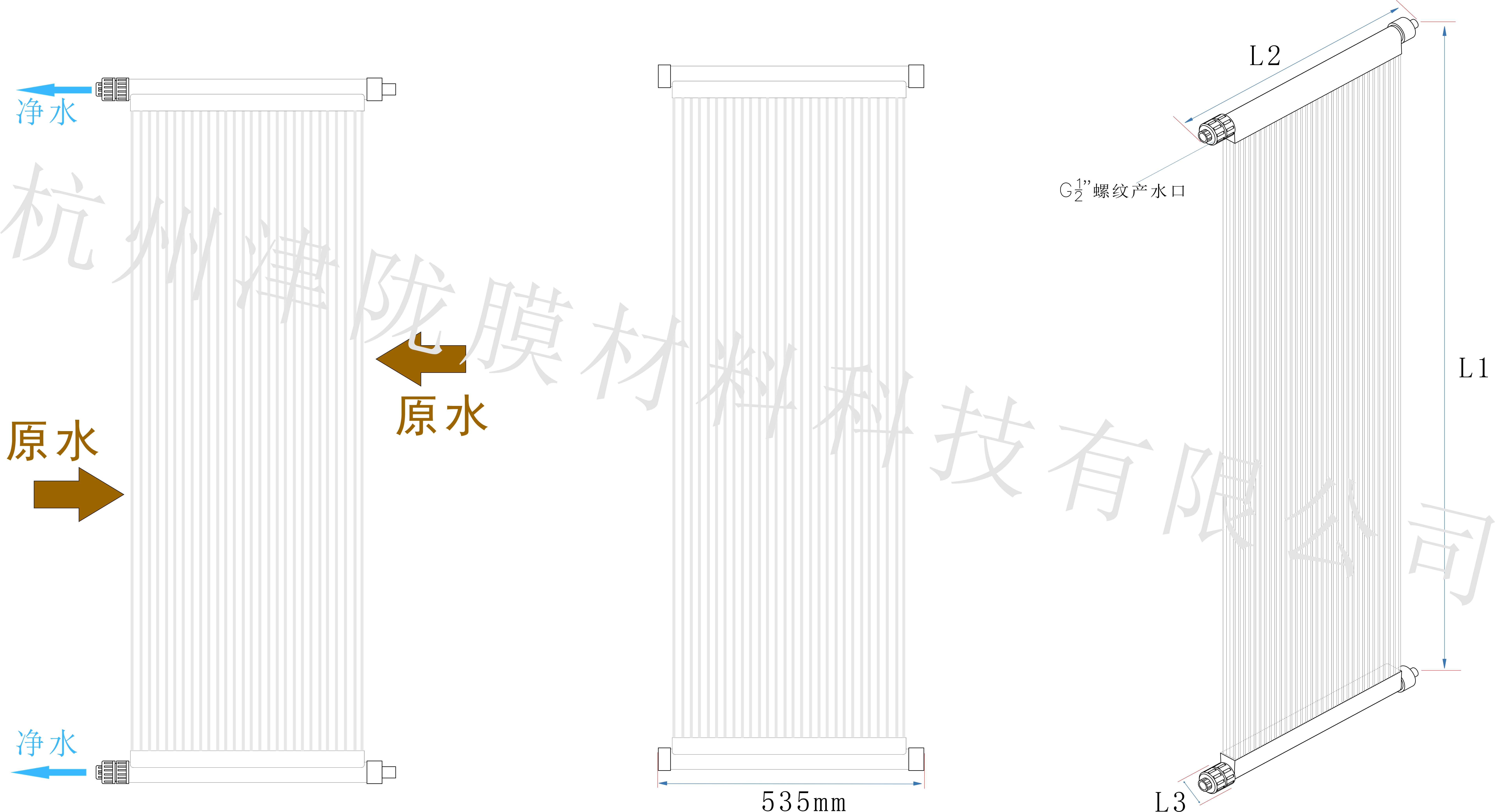

Size（L1*L2*L3mm）

1000x615x50

1500x615x50

2000x615x50

2300x825x42

Membrane material

PVDF

Filtration accuracy

0.03micron

Outer diameter

2.0mm

Filter method

Negative pressure suction/Static pressure due to gravity

Water production flux

8～30(L/㎡·h)

Material of the water collection trough

ABS

Operating temperature

5～40℃

Use the pH range

2～13

Produced water turbidity

≤0.3NTU

Tensile breaking strength（N）

200、400、600

Porosity

＞68%

Operating pressure

-0.01～-0.05MPa

Maximum transmembrane pressure difference

-0.05MPa

Bacterial retention rate

＞99%

Maximum tolerable residual chlorine

2000ppm
